Exploded view of Engine parts | |
 Home Page |
Van Diemen owner's list |
Photos of different models |
Parts Suppliers, Repair Facilities, Rental / Race Prep Providers, Forums, Series, etc.. |
Technical Sheet |
Photo Page |
Photo Page |
|
Webber Carburator adjustment |
|
 |

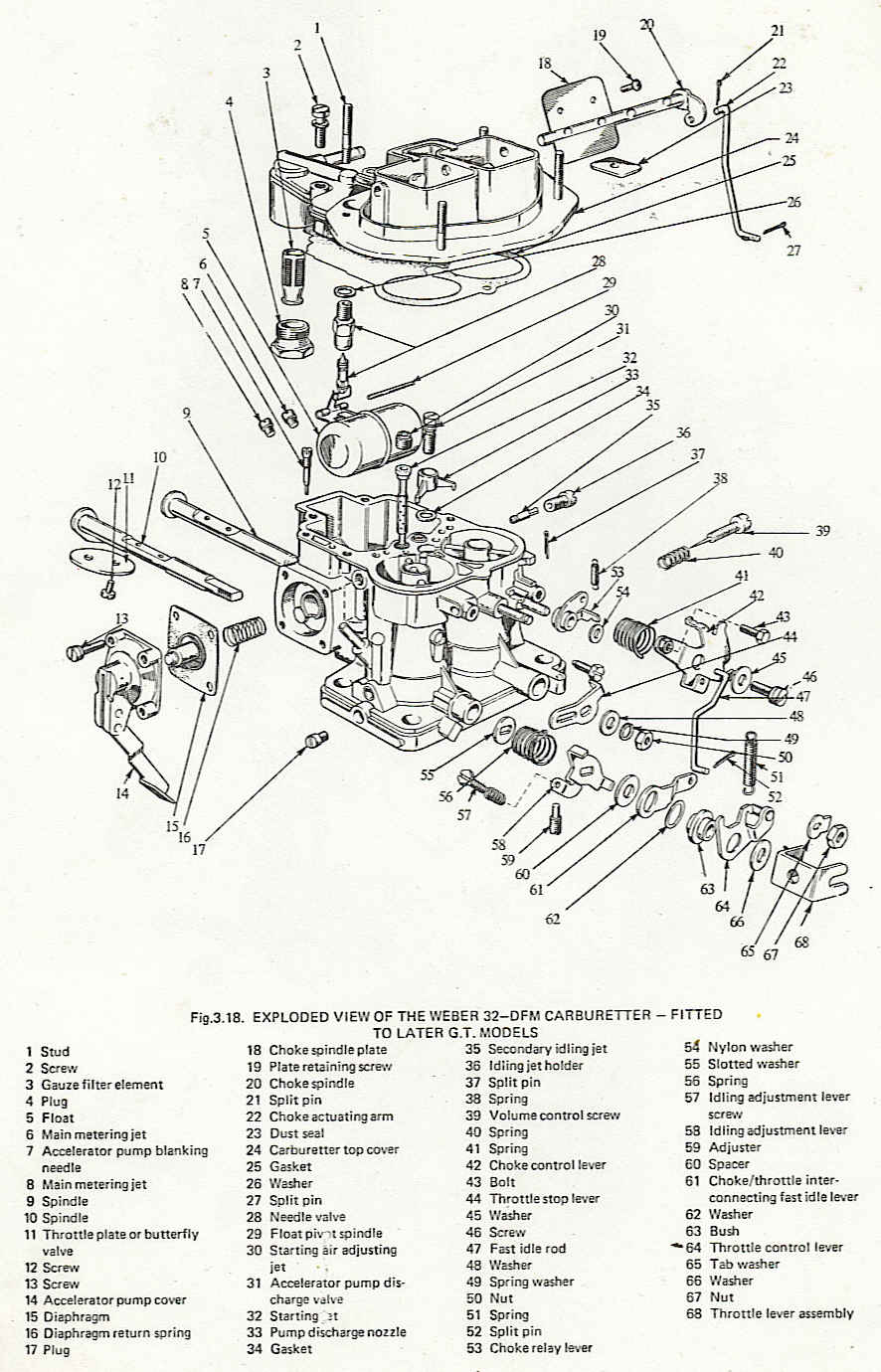

Exploded view of the Weber carburator How to adjust the weber carburator: http://www.racetep.com/weberadj.html |
|
|
 |

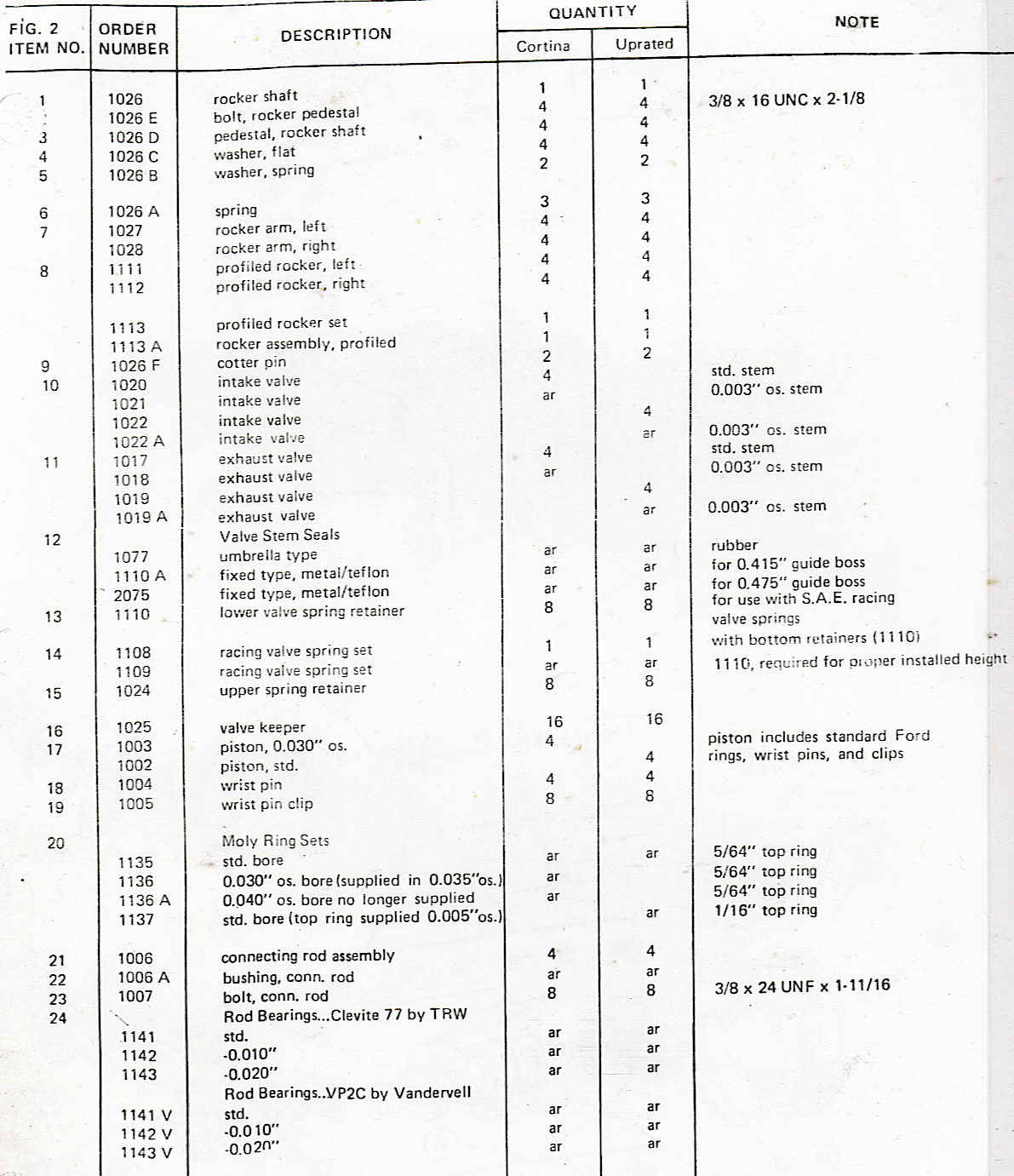

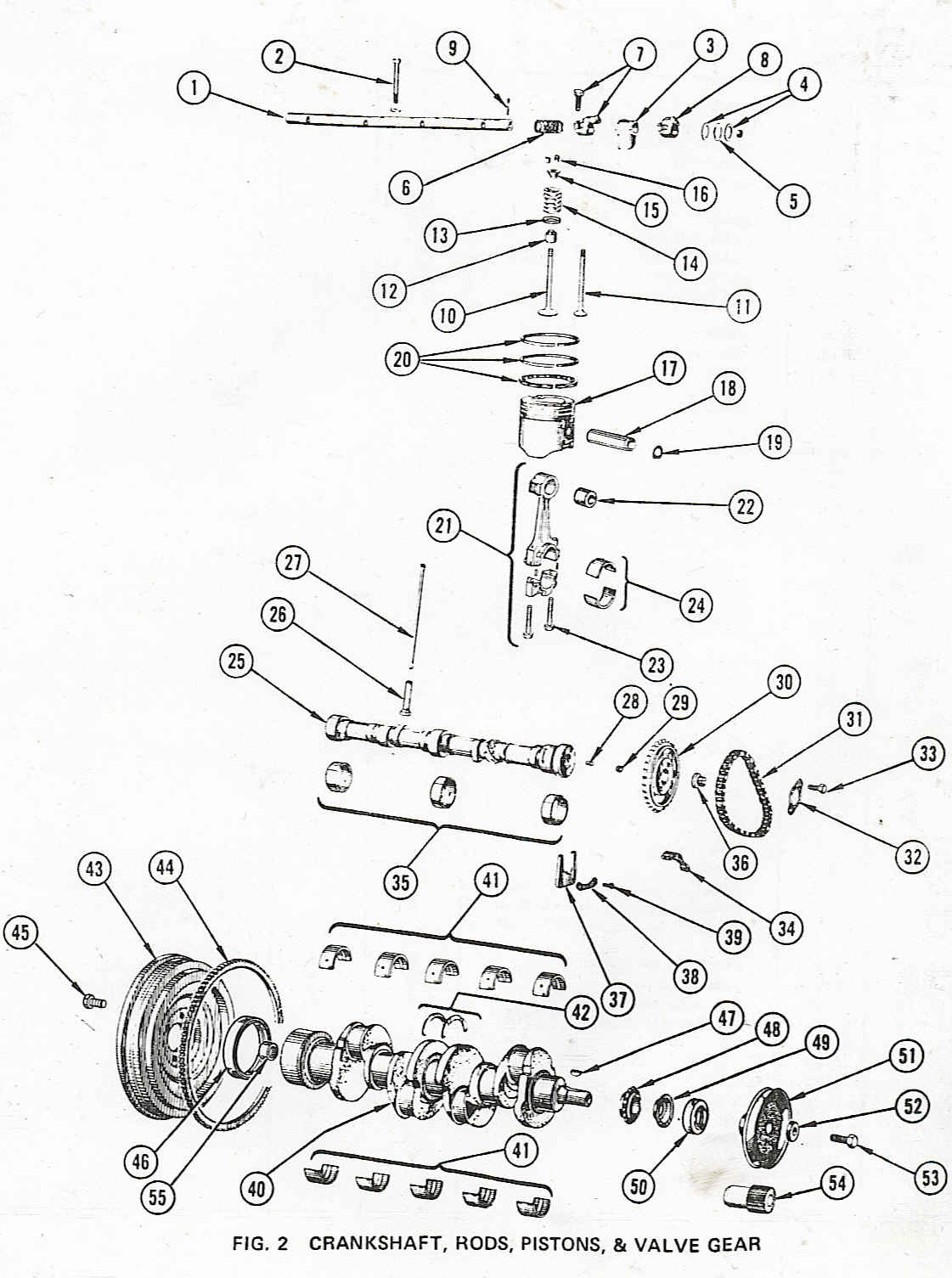

This parts List on the left is the listing for the exploded view of the crank, pistons, camshaft, and valves (see fig 2 below right) |
|
|
 |
 |

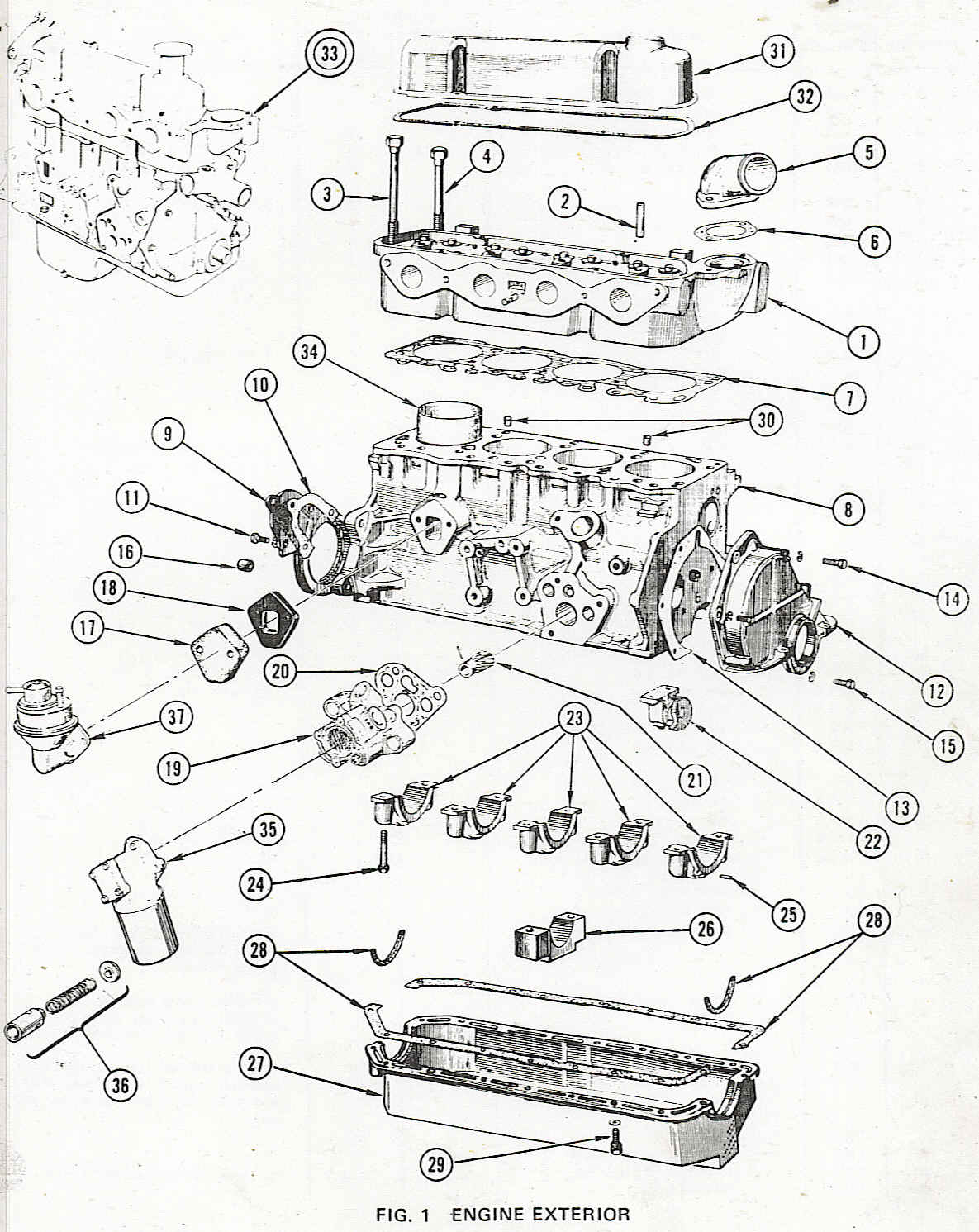

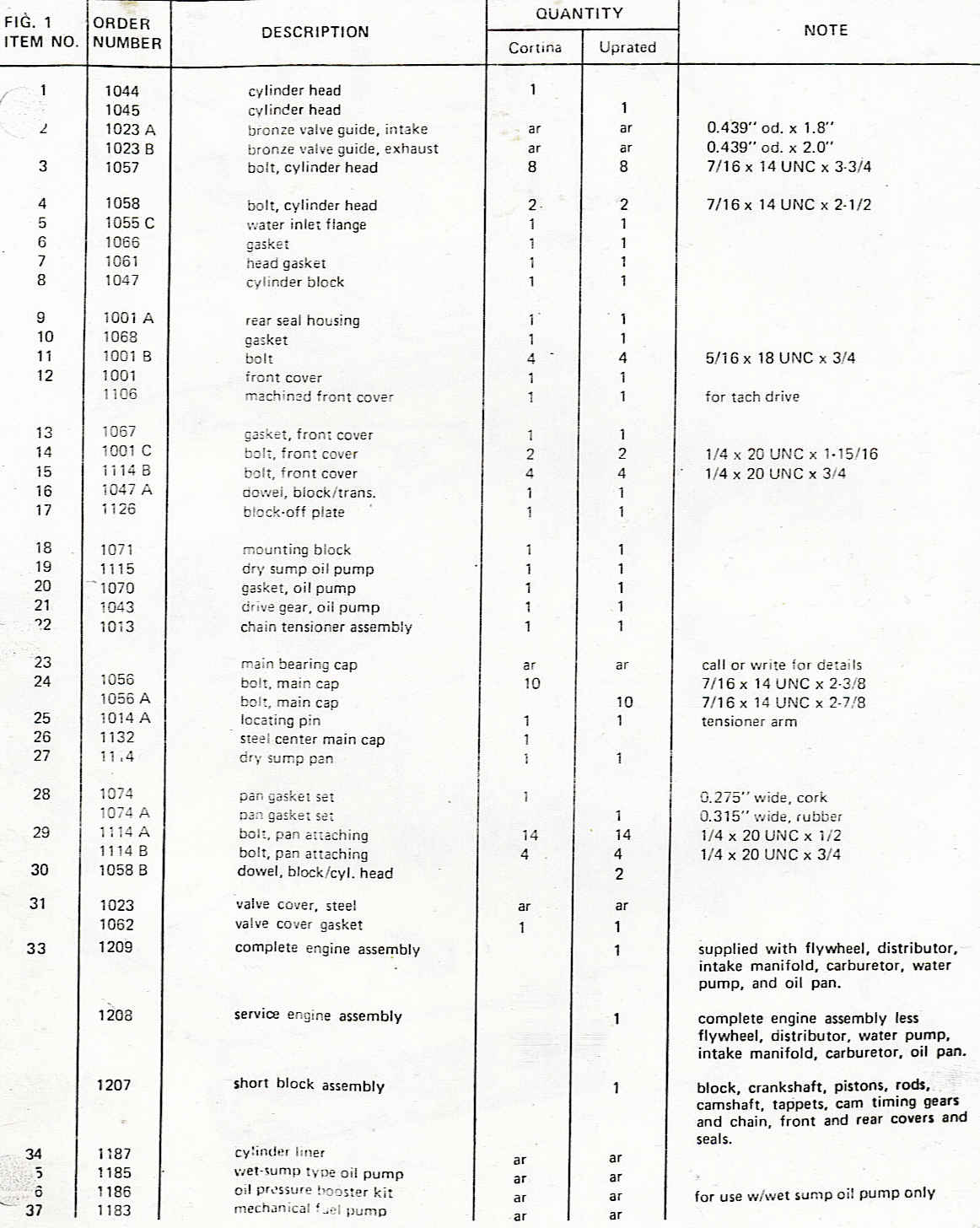

This parts list on the left is the listing for the exploded view of the Exterior components of the engine (see fig 1 below right) |
|
|
 |
|
|
